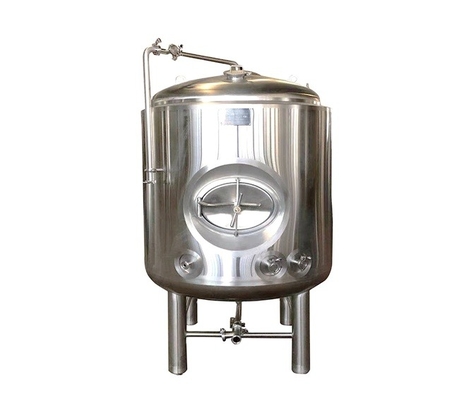

Brewpub/bar/restaurant 30BBL 20BBL 1000L 2000L Bright Brite Beer Tank Beer Tank Lager Tank

1.0 Sets
MOQ
Brewpub/bar/restaurant 30BBL 20BBL 1000L 2000L Bright Brite Beer Tank Beer Tank Lager Tank
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Processing: Fermenting Equipment
Applicable Industries: Hotels, Food & Beverage Factory, Restaurant, Food & Beverage Shops
Showroom Location: None
Condition: New
Processing Types: Beer
Voltage: 220V/380V Adjustable
Power: According to your volume
Dimension(L*W*H): Capacity Request
Weight: According to your volume
Warranty: 3 years, 3 years
Machinery Capacity: 1000L, 2000L, 3000L
Machinery Test Report: Provided
Warranty of core components: 1 Year
Core Components: Motor, Pump, PLC
Key Selling Points: Long Service Life
Marketing Type: Ordinary Product
Video outgoing-inspection: Provided
Product Name: 30BBL 20BBL 1000L 2000L Beer Brite Tank Beer Bright Tank Lager Tank
Application: Brewpub/Bar/Restaurant
Capacity: 2000L
Material: Stainless Steel 304
Thickness of Tank: Inner 3mm/ Outer 2mm
Keywords: Cheap conical fermenter
Cooling unit: Chiller with glycol tank
Insulation: 80mm Polyurethane
Technology: Offer AUTO CAD and 3D design drawing
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: None
After-sales Service Provided: Field installation, commissioning and training
인증: CE ISO
기본 정보
인증: CE ISO
결제 및 배송 조건
Packaging Details: Packing and Shipping: a. All the tanks will be covered with thin plastic film. Then Fix to iron frame for fixation.b. All the parts will be protected with bubble bag or thin plastic film, the put in to wooden case. c. Mash Pipes, fermentation cooling pipes
Supply Ability: 40 Set/Sets per Month
제품 설명
Product Description
Model
30BBL 20BBL 1000L 2000L Beer Brite Tank Beer Bright Tank Lager Tank
Capacity
Can be customized according to your requirement
Material
Stainless steel SUS304
Combination method
Mash/lauter tun, kettle/whirlpool tank
Application
Restaurants, bars, hotels, brewery
Heating way
Electric heating/Steam heating/Direct fire heating
Voltage
AC380/220V,50/60HZ
Floor area
According to your volume
Beer Fermentation Tanks
1.Usage

This Fermentation Tank is widely applied in beer production line. It can be used as both fermentation tank and storage tank.

2.Constructure and advantage

1) The tank has dish top, cylinder body and 60-70° cone bottom. The tank body has interlayer and cooling jacket. The tank body,upper and lower closure heads(or taper) all adopt spinning R-angle processing. The internal wall of the tank has got mirror polishing with finish Ra≤0.4μm. The temperature insulation material adopts high efficiency polyurethane foam.

2) It has no sanitary dead corner and its wholly-enclosed design ensures that materials are always mixed and ferment at non-pollution state.

3) It is equipped with devices including manhole, air respirator, cleaning ball, sanitation inlet,sampling valve,
thermometer,pressure gauge, viewing mirror, and viewing lamp. The fermentation process of beer, fine chemical engineering and biological products is aseptic and untainted.

4) Fermentation tank adopts aseptic system which helps avoid microorganism pollution in the air and greatly extends quality warranty period and purity of the products. We specially designed and installed aseptic respiratory air hole or aseptic normal-pressure fermentation system, which can finish circulating heat-up and cooling through medium heat-up and cooling.

The parts that contact materials are all made of stainless steel SUS304. External surface adopts sand grinding surface polishing treatment. All is in accordance with GMP standard.
Cooling System
Glycol water tank
-Material: -Inside wall, SUS 304, 3mm,outside wall, SUS 304, 1.5mm
-Insulation, PU, 100mm -Thermowell, 8mm
-Temperature sensor, Model: PT100
-Water supply piping: ø32mm
-Drainage piping and butterfly valve, ø32mm -Including all pipes,fitting, insulation materials
Cooling compressor
-Scroll copeland type compressor
-Capacity: 3-7hp according to the capacities
-Refrigerant: R404A
CIP System
CIP Unit
-Capacity: 30-100L
-SUS 304 material
-Water pump, 3T/h
Certifications
Our services
Pre-Sales Service and After Sales Service

1. Free consultation service before, during, and after sales,provide Layout plan in 3D or CAD drawings of your brewery;

2. Professional engineers going abroad for the installation ,debugging, and training, all the travelling cost and locate food, and hotel shall be afforded by the buyer.

3. The installation period is about 15 days including assembling brewing tanks and training the operator.It is free of charge within 15 days. The buyer will be charged $60 per day for each engineer for the extended
installation.

4. Can provide service via phone, e-mail, Skype, Whatsapp, MSN, or any other communication method available to the customer.

5. Brewing technology, brewing formula, can be offered available

6. More spare parts are available to offered freely.
Packaging&Delivery
Company Introduction
FAQ
If you don't know which brewery equipment is you need,please see belows questions,just tell me the answers according to the prompt:

1.The production capacity one day that you want to ?
2.The heating system:electric heating/steam heating/direct fire heating.which one heating is you prefer.
3.The material:stainless steel 304./red copper which material is you need ?
4.The brewery set up in hotel/pub or small brewery or for home brewery ?
5.The other request of the brewery:fermenters quantities,the capacity.
6.How many batches one day can be production ?
7.For the bottle filling machine,beer filter,keg washing and filling machine if you need we also can supply it.

If you have more questions on the brewery,please contact me anytime and any advises is highly welcomed.
